Beautiful Small Clean Bench

eautiful small clean benches are Dersion’s patent products. They have smaller sizes and high-end appearances. The outside brackets are designed in a particular gradient for human body’s comfort, workers wouldn’t worry about knocking head against the top edge when they leaving the operation position.
Beautiful Small Series offer partial clean environment in 1-100 Class as well, can be widely used in various industries same as traditional vertical laminar flow clean benches. Dersion’s application cases include Quanta Computer, Matsushita Electric, Nanjing NAC Vehicle, Dazhuo Optics , etc.

Get A Quote

浏览次数：

Product Features

Product Features:

● Universal wheels with bolt fastening, reinforce the wheels’ soundness, no skew problem;
● Work tables made of stainless steel, easy-cleaning;
● LED lights embedded in the back plates which made of electrostatic sprayed stainless steel, didn’t cause light’s reflection, reduce the operators’ visual fatigue;
● Equipped with LCD touch screen and pressure gauge(DWYER, USA), real-time monitor working status, remind the service times of HEPA filter and ultraviolet radiator, adjust air speed.

PS: You can order the sole desktop cabinets of Beautiful Small Series, the height is 1100mm.

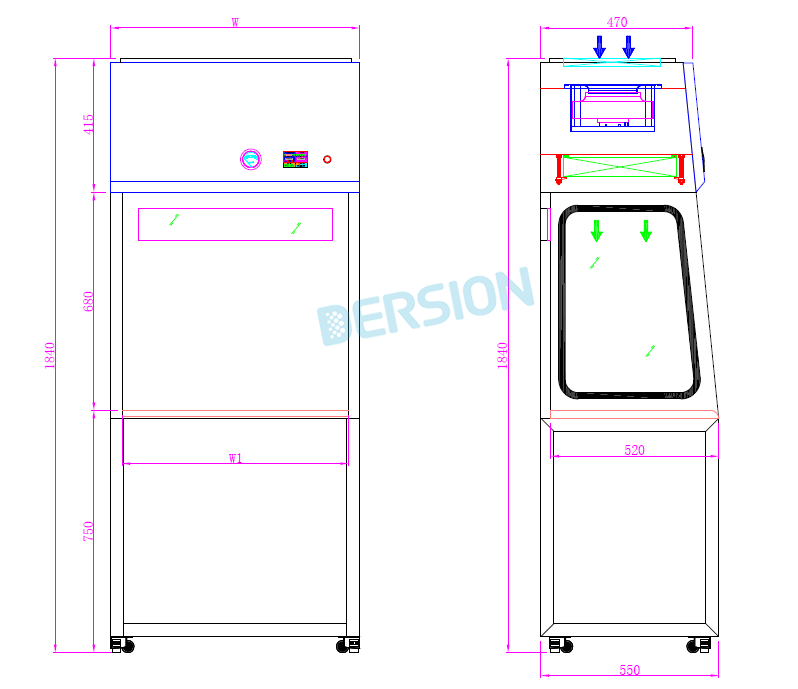

Standard Drawing:

Specifications:

Size WDH	Outside 770x550x1870 Inside 700x520x680	1270x550x1870 1200x520x680
People	1	2
Cleanliness Class	ISO 5( Better than 209E 100Class)
Air Speed (m/s)	0.45m/s±20%
Filter System	99.99%@0.3um
Filter System	620x350x70-1pcs	1120x350x70-1pcs
Material of Cabinet Table	Brushed Stainless Steel SUS304
Clump count	≤0.5个/皿（φ90）/时
Noise	42-52dB	50-56dB
Power	220V 80W	220V 130W

Case Share:

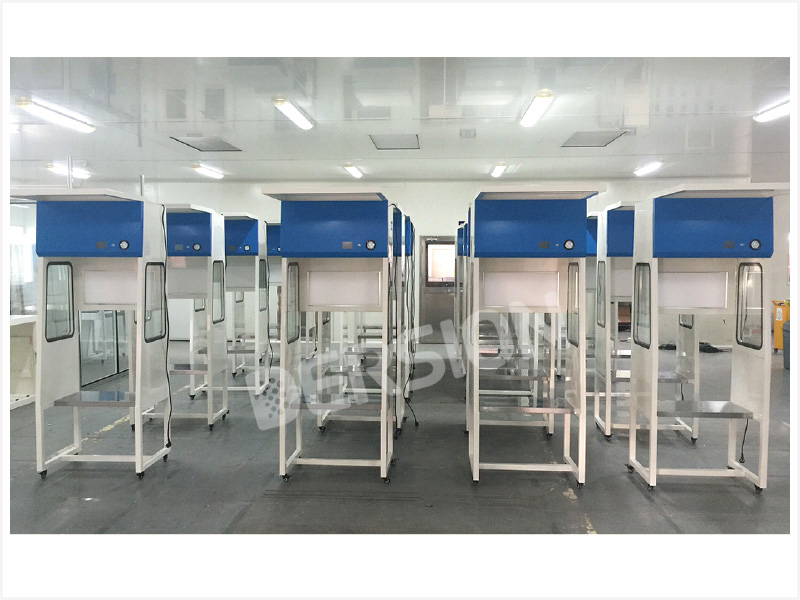

Quanta Dafu Computer(Changshu)
