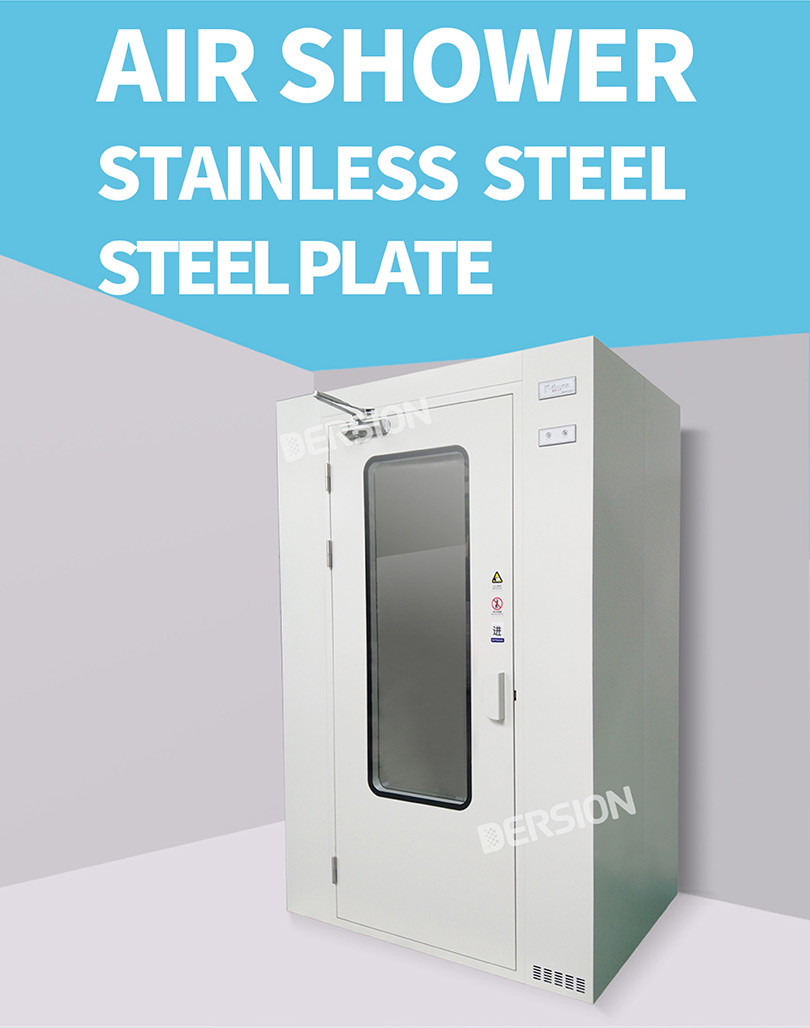

Multiple Person Air Shower



Get A Quote

浏览次数:
Product Features:
●Intelligent: Future Series Control System; ARM master, double CPU, 280MHZ; Several shower patterns; Voice prompt, pictures and videos display; Intelligent judging about link and running status; Fault self-detection capability; Reserved sockets for transducers of air speed, air pressure, cleanliness class.

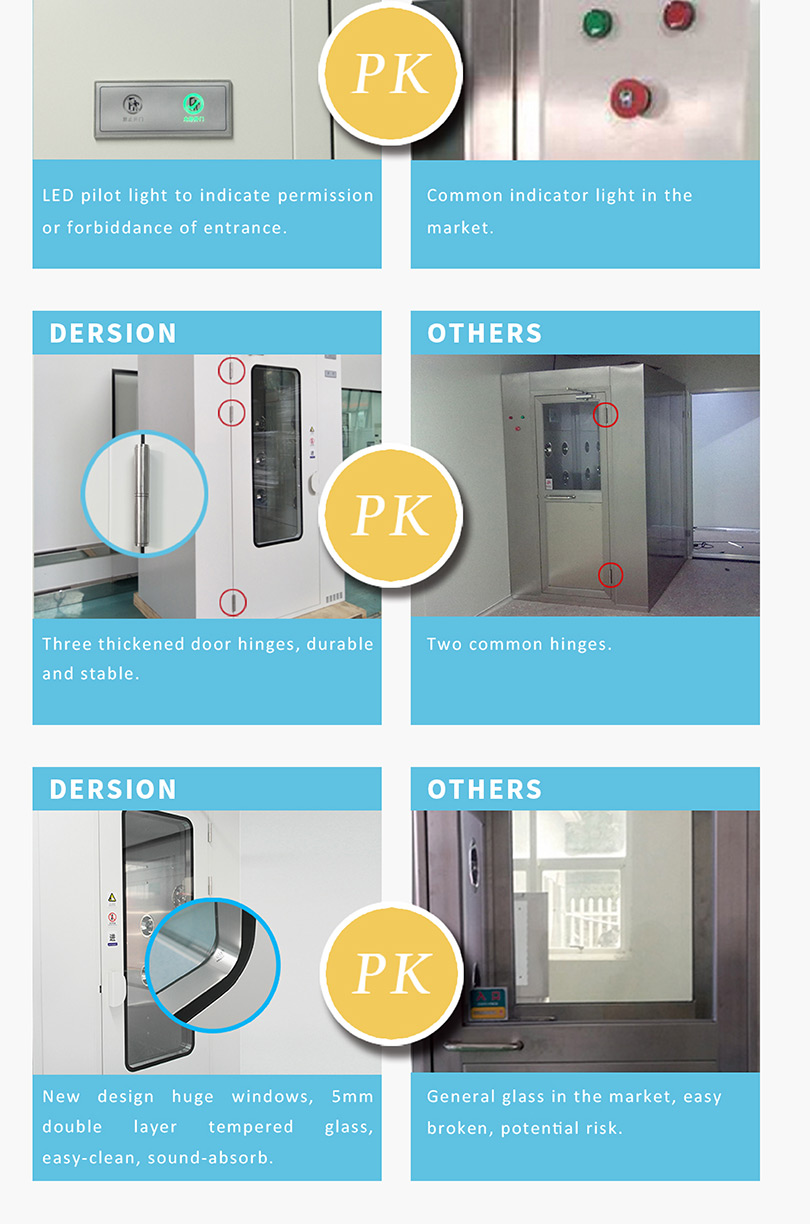

●Beautiful: Huge double-glazed windows; No visible welded joints; LCD touch screen.
●Reliable: Steel air-tight door with double glazing units made of tempered glass; Dispensing technology, sealing class equal to IP6; Passed over one million times tests.

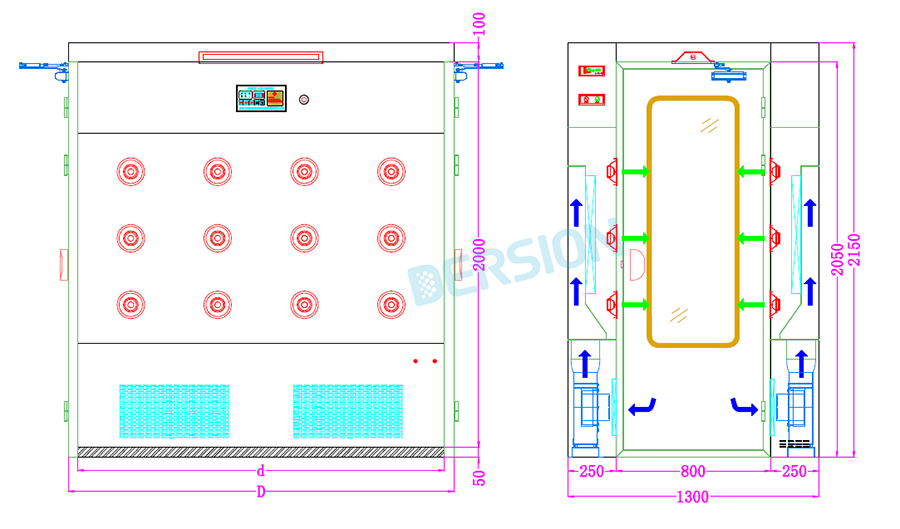

Standard Drawing:

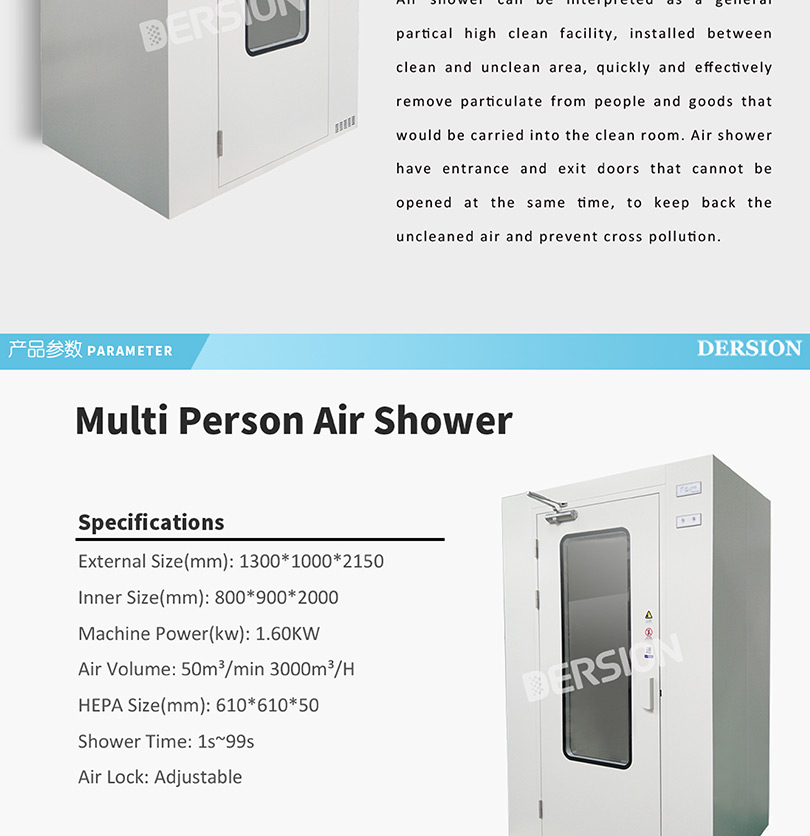

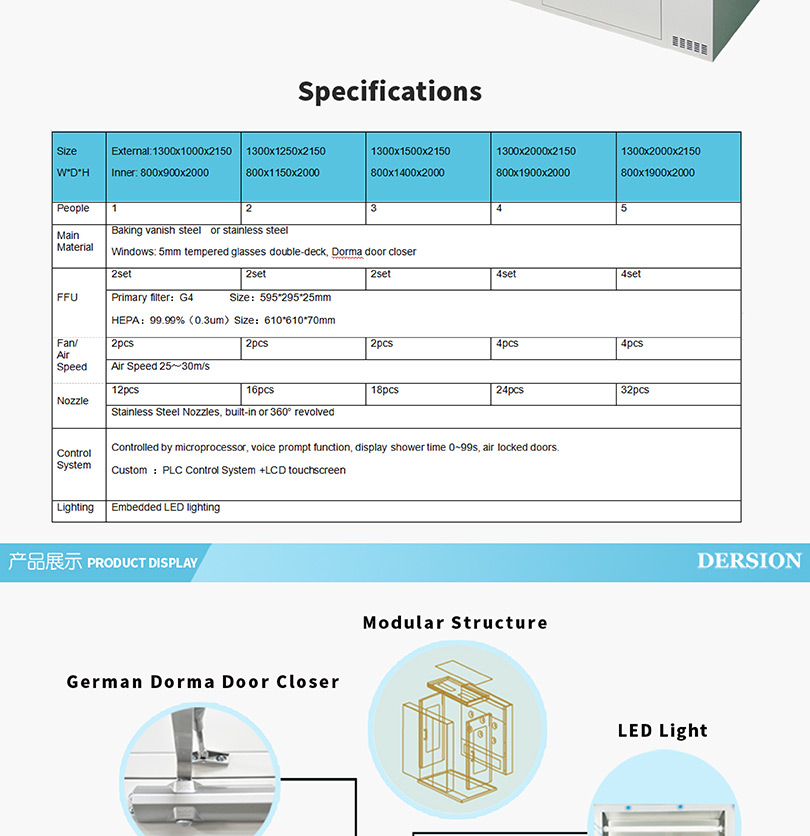

Specifications:
Size
W*D*H

  External: 1300x1000x2150
Inner:    800x900x2000


  1300x1250x2150
 800x1150x2000
  1300x1500x2150
 800x1400x2000
  1300x2000x2150
  800x1900x2000
  1300x2500x2150
  800x2400x2000
People 1 2 3 4 5

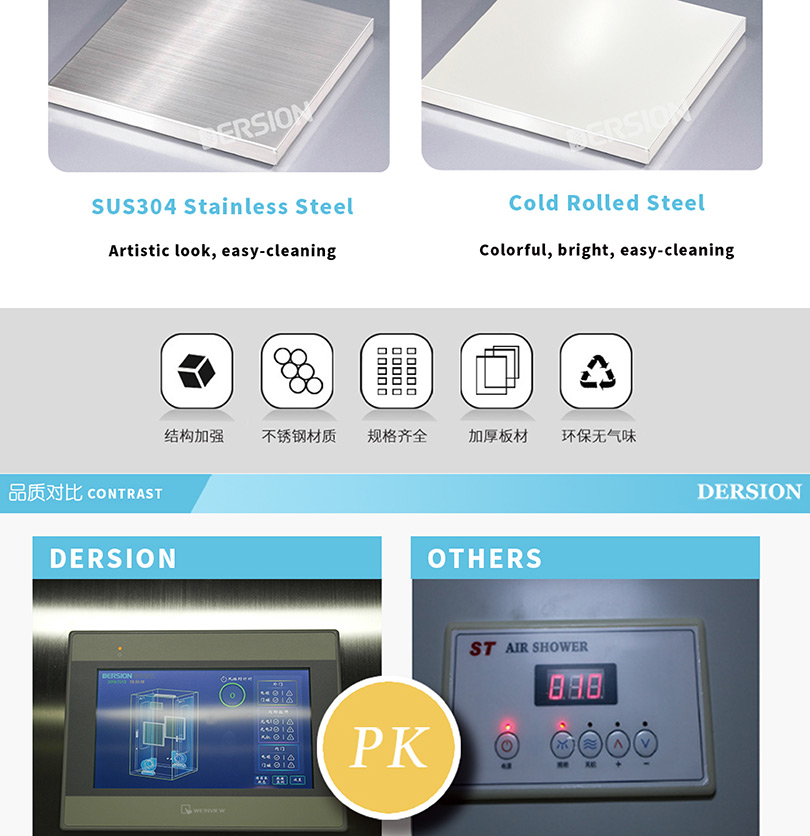

Main Material Baking vanish steel  or stainless steel

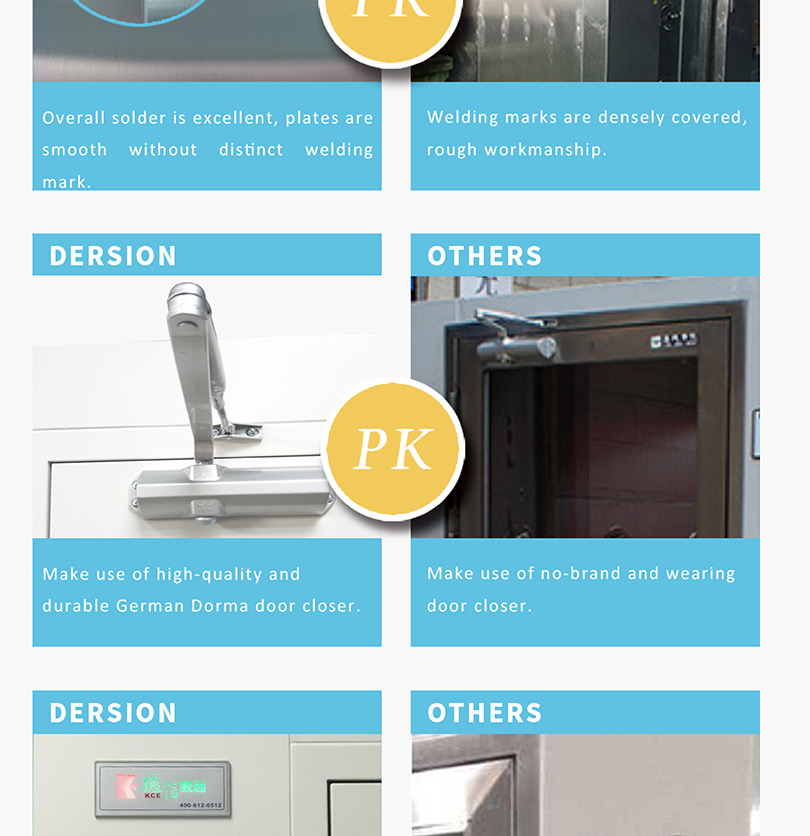

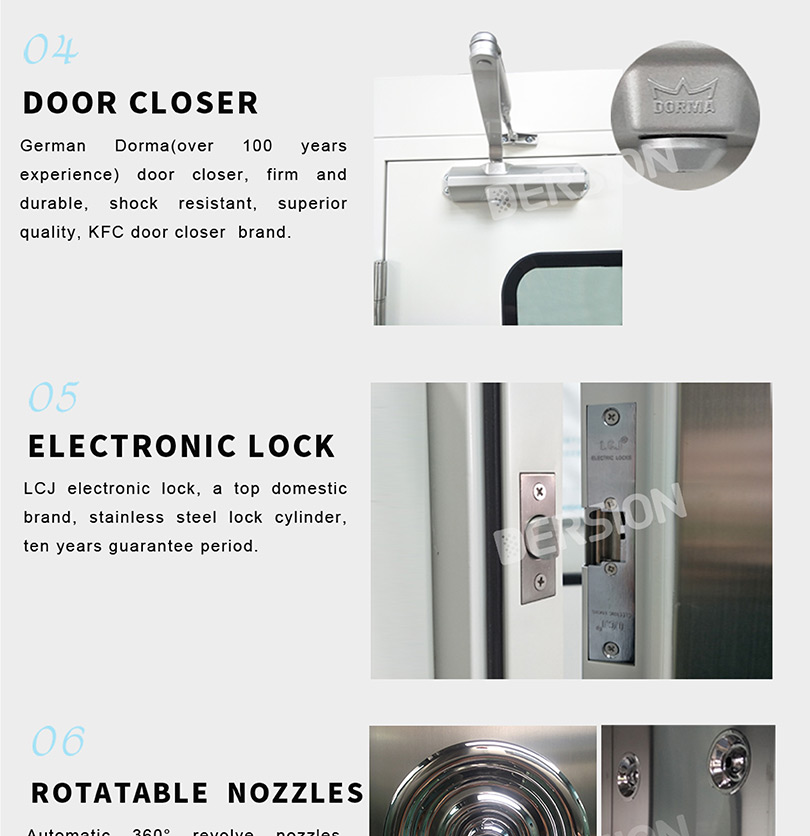

Windows: 5mm tempered glasses double-deck, Dorma door closer
FFU 2set 2set 2set 4set 4set

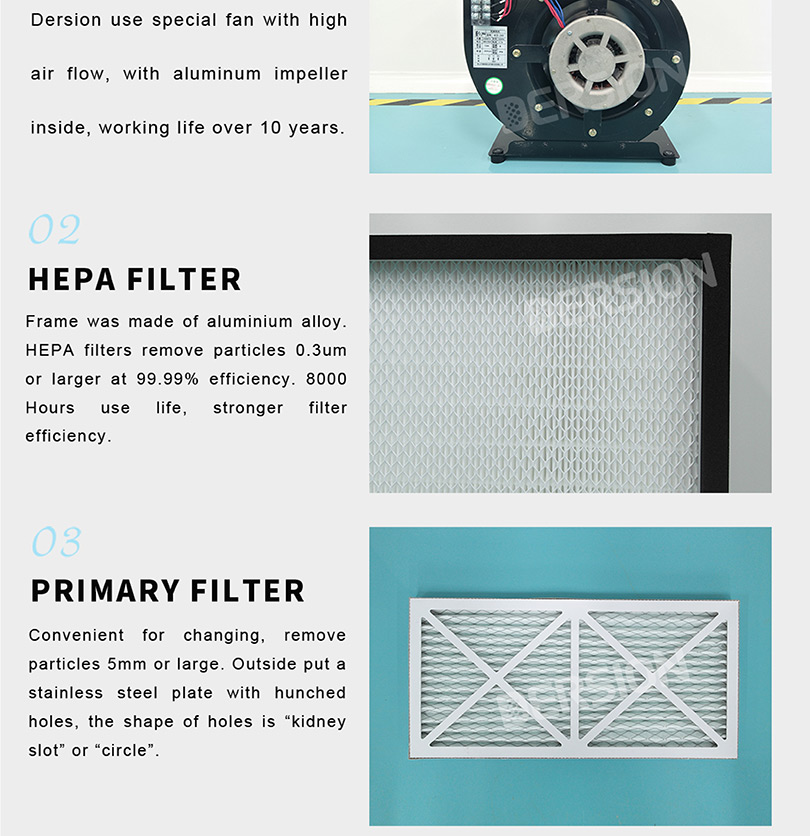

Primary filter:G4       Size:595*295*25mm
HEPA:99.99%(0.3um)Size:610*610*70mm
  SFan/Air peed

2pcs 2pcs 2pcs 4pcs 4pcs

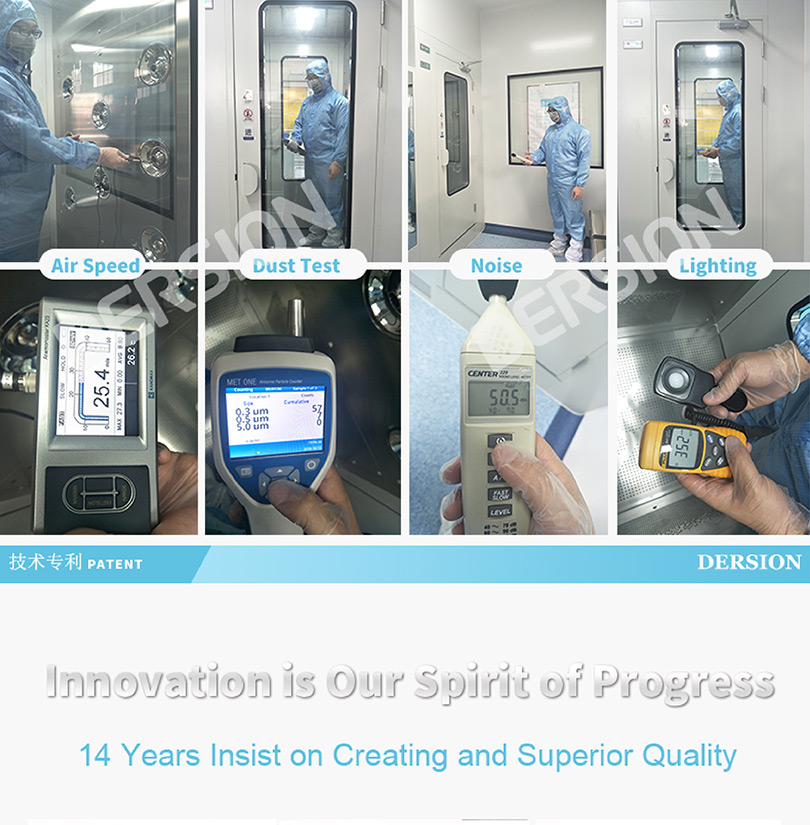

Air Speed 25~30m/s
Nozzle 12pcs 16pcs 18pcs 24pcs 32pcs

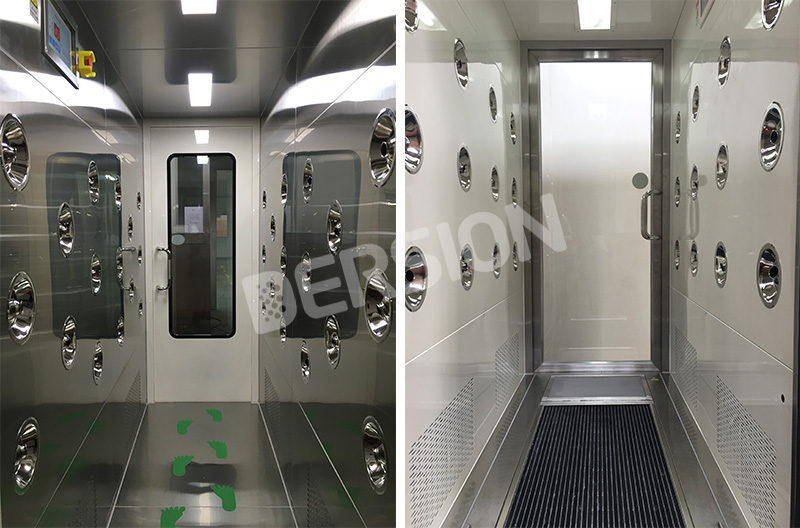

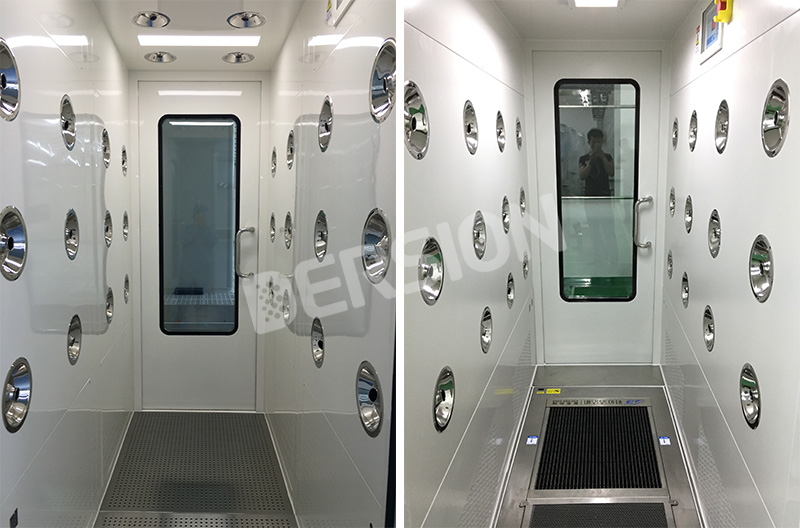

Stainless Steel Nozzles, built-in or 360° revolved

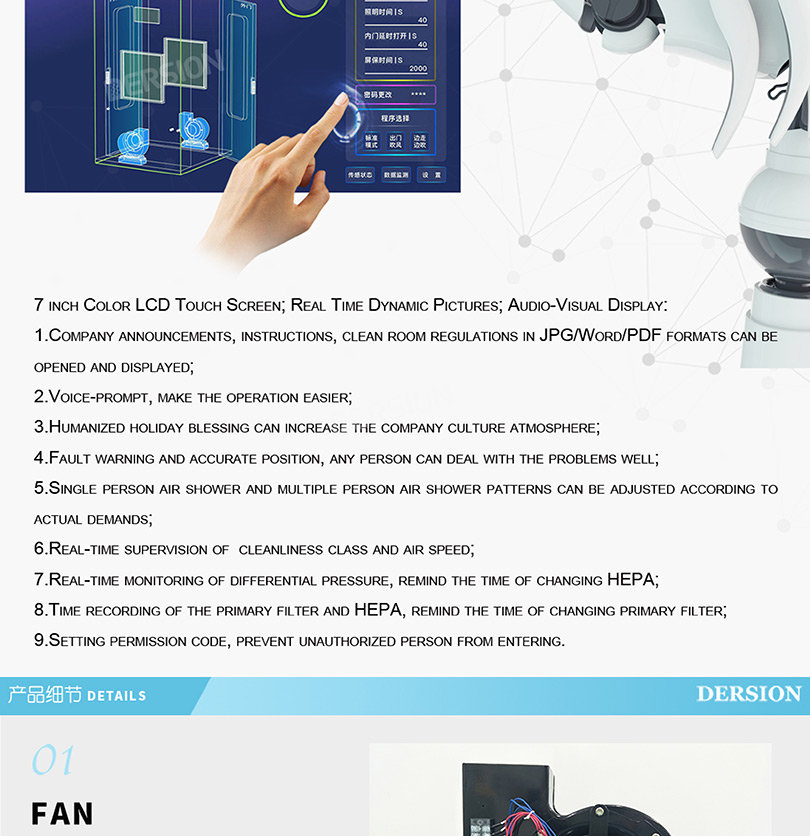

 Control System  Controlled by microprocessor, voice prompt function, display shower time 0~99s, air locked doors.
Custom :PLC Control System +LED touchscreen

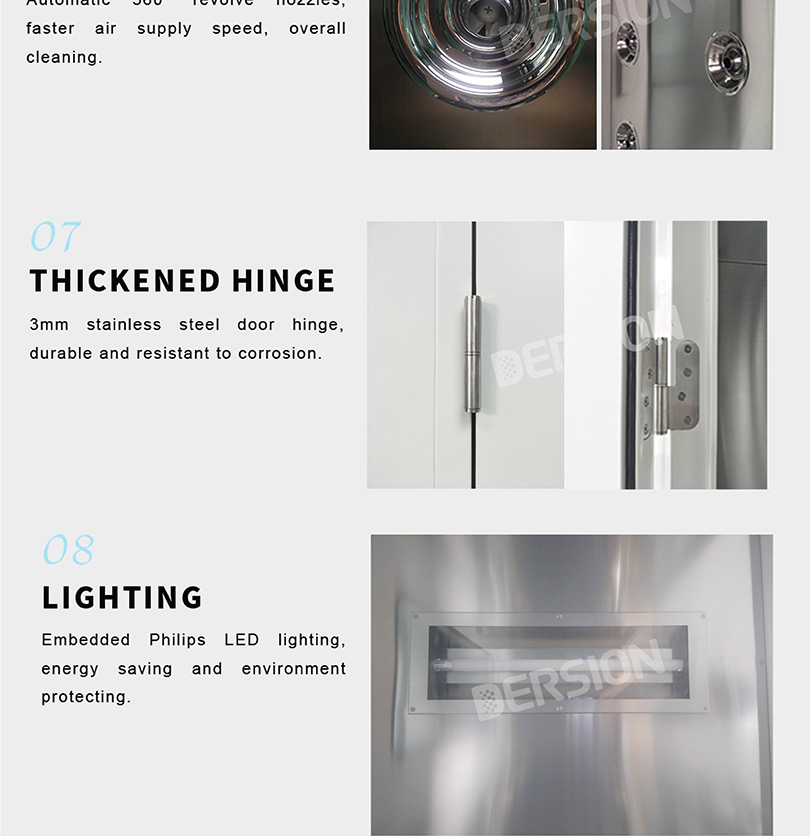

Lighting Embedded LED lighting
Power 1.52KW 1.52KW 1.52KW 3.04KW 3.04KW

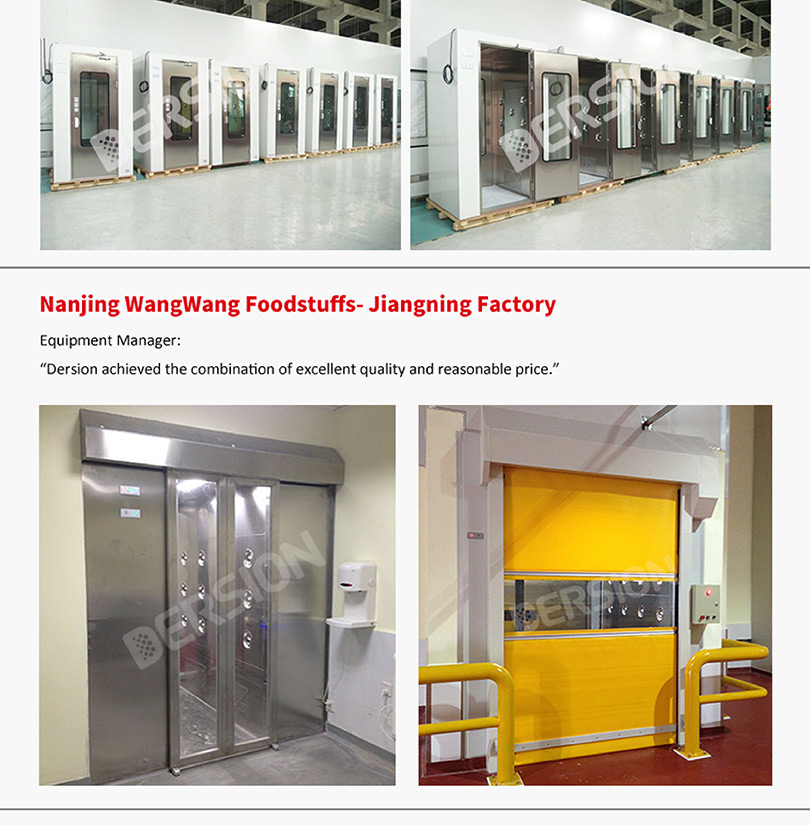

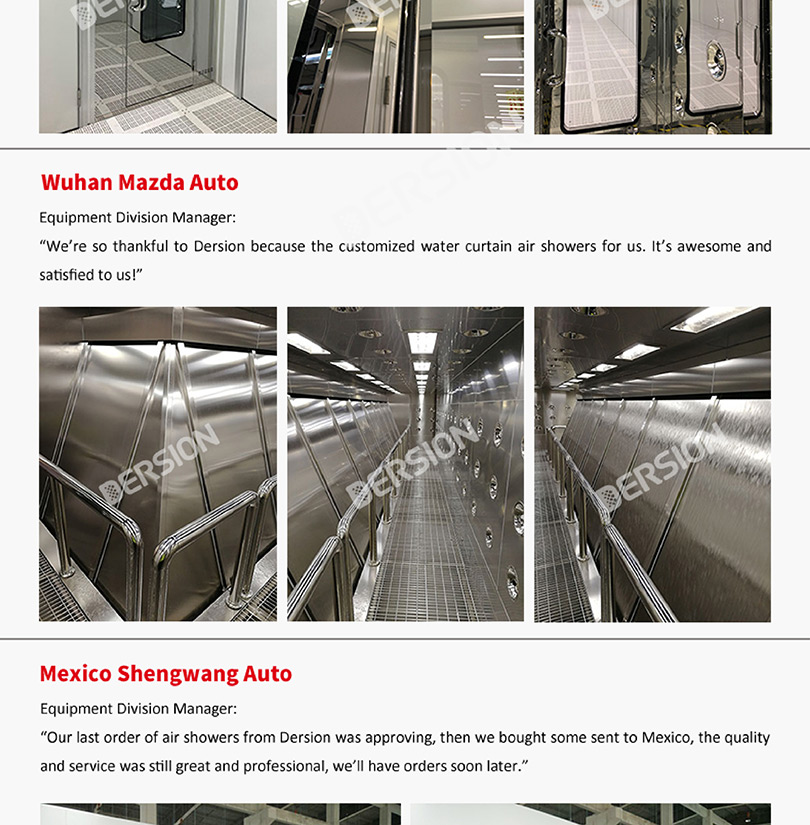

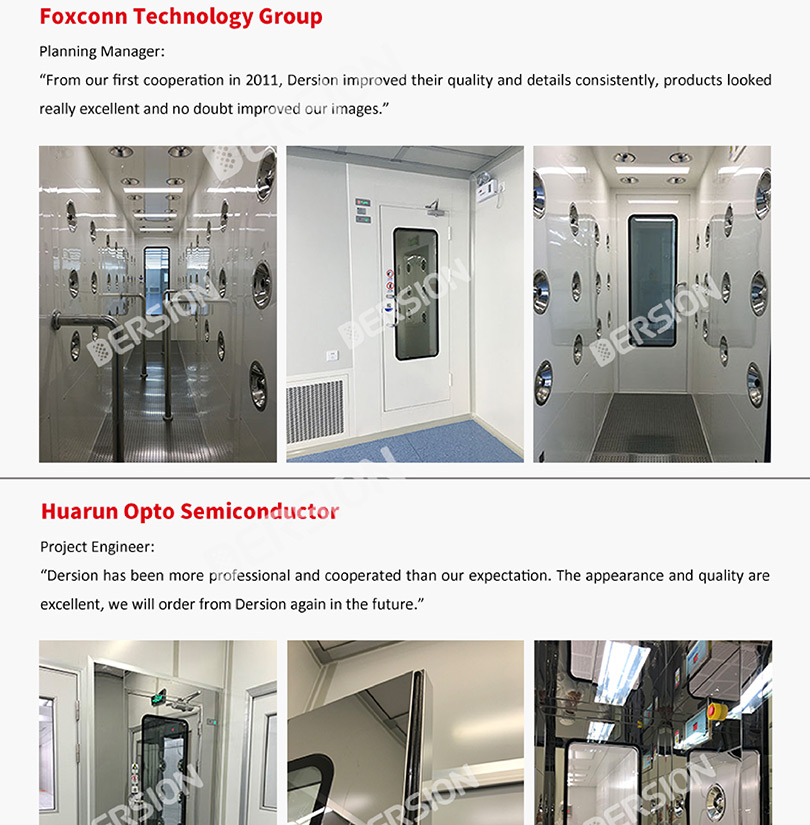

Project Case:


                        Foxconn Technology Group
