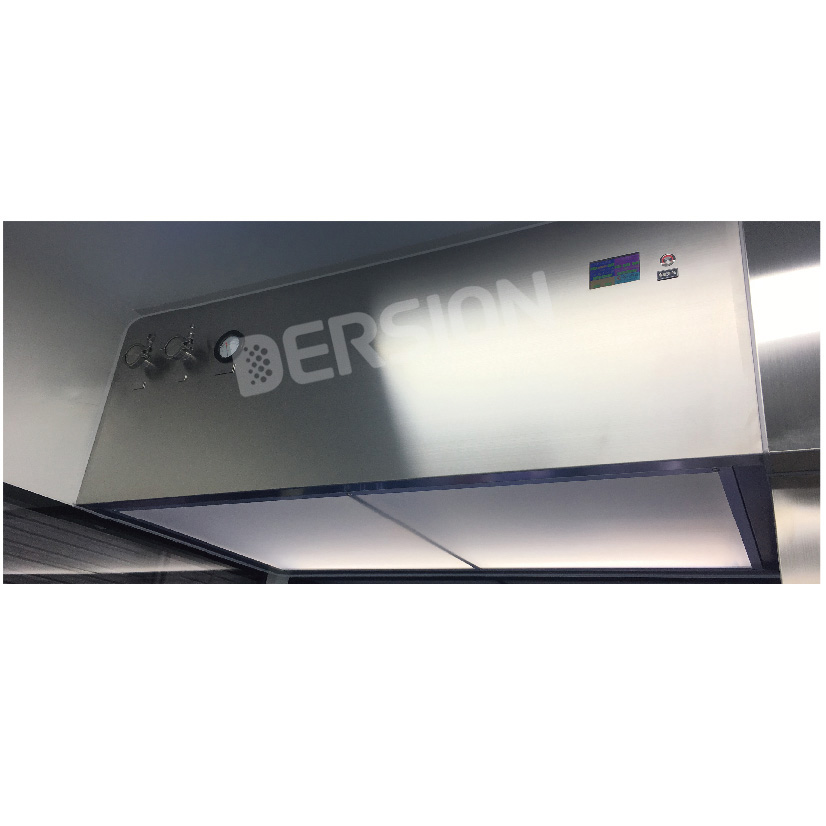

Laminar Flow Hood

A air purifier units provide high level cleanliness environment which can be installed in the top of other equipment, like clean bench, to achieve the 100 level cleanliness. ( Cleanliness Class 1-100K, smaller number means higher clean level). This machine can be used by single or group. Working principle is air filtered by HEPA,direct an average laminar flow downward. This machine can be processed to movable laminar flow dolly.


Get A Quote

浏览次数:
Product Features:
● Raw material is SUS304, high-quality stainless steel, level and bright;
● Newest type liquid HEPA filter, meet the standard of cGMP;
● PAO dust-send window and DOP test window;
● Dwyer differential pressure gauge;
● Air speed keep the steady status, fluctuation rate ±10%;
● LCD touch screen control.

Standard Drawing:



Technical Specifications:
Dimensions
W*D*H
         1300x700x450                     1300x1300x450                        2600x700x450
Material SUS304 Stainless Steel SUS304
Clean Level GMA-A(Class 100)
 Air Speed 0.45m/s±20%
       Air Volume       1200 2400 4800
Filter Units 99.99%@0.3um
1170x570x93-1pcs 1170x570x93-2pcs 1170x570x93-3pcs
Manometer Dwyer 0-500Pa
Test Window SUS PAO dust sent mouth and DOP test mouth
Noise 53dB 55dB 58dB
Power 220V  115W 220V  230W 220V  460W
